Product CatalogP1100/P1130/P1150/P1220
Product Catalog
P1100/P1130/P1150/P1220
At the beginning of its establishment, Zhisensor developed a MEMS scanning module for MEMS lidar. The module integrates MEMS mirror drive, control and position detection functions.

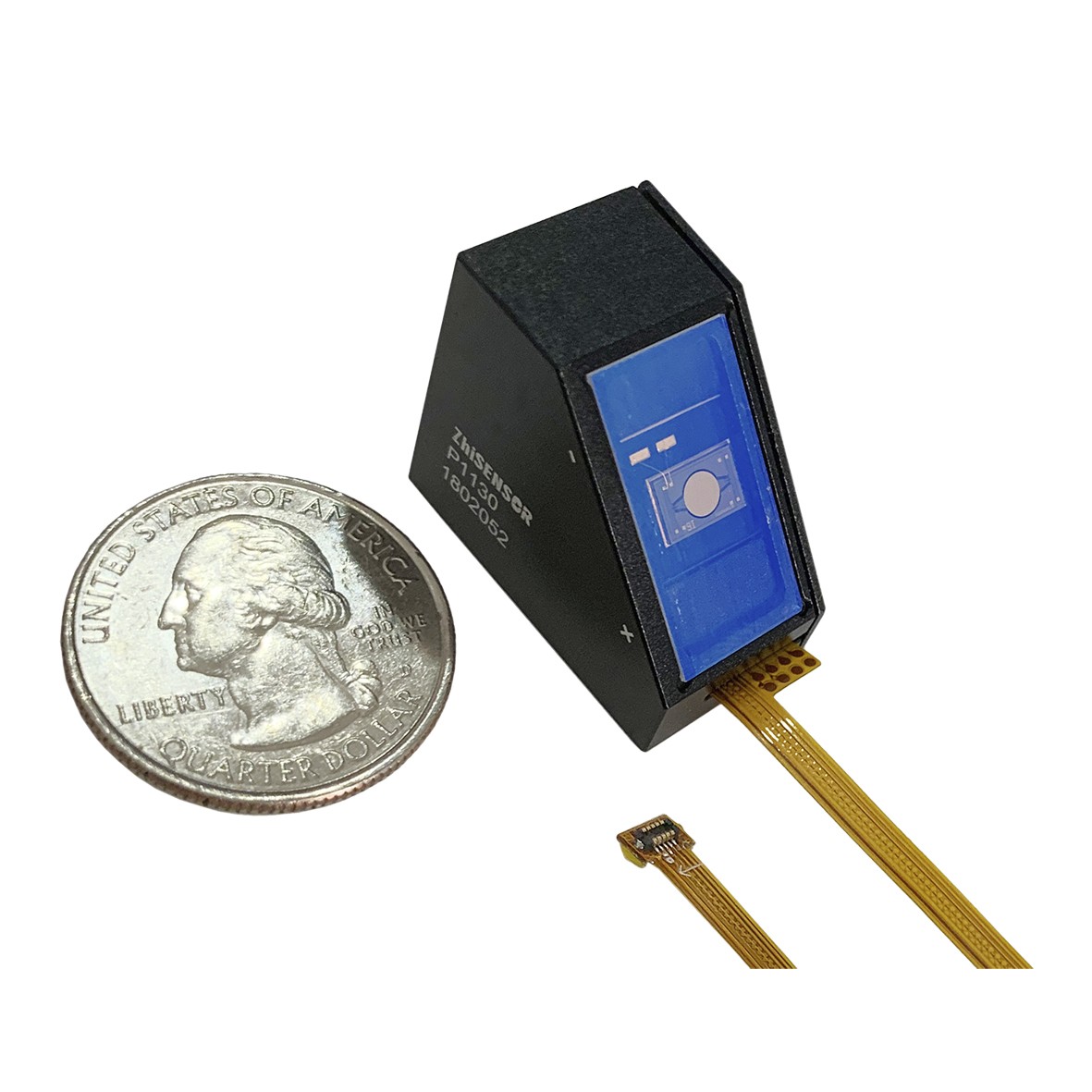

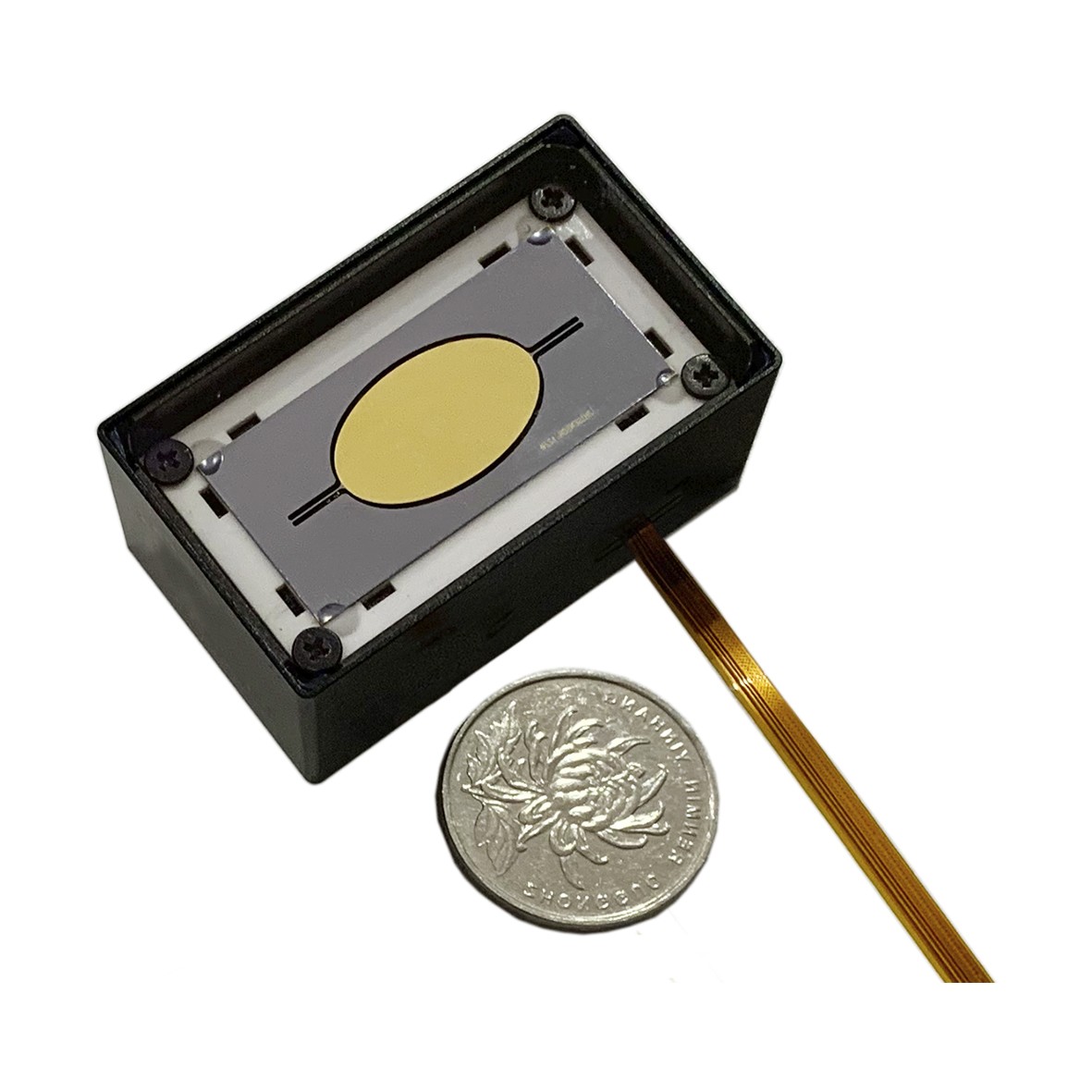

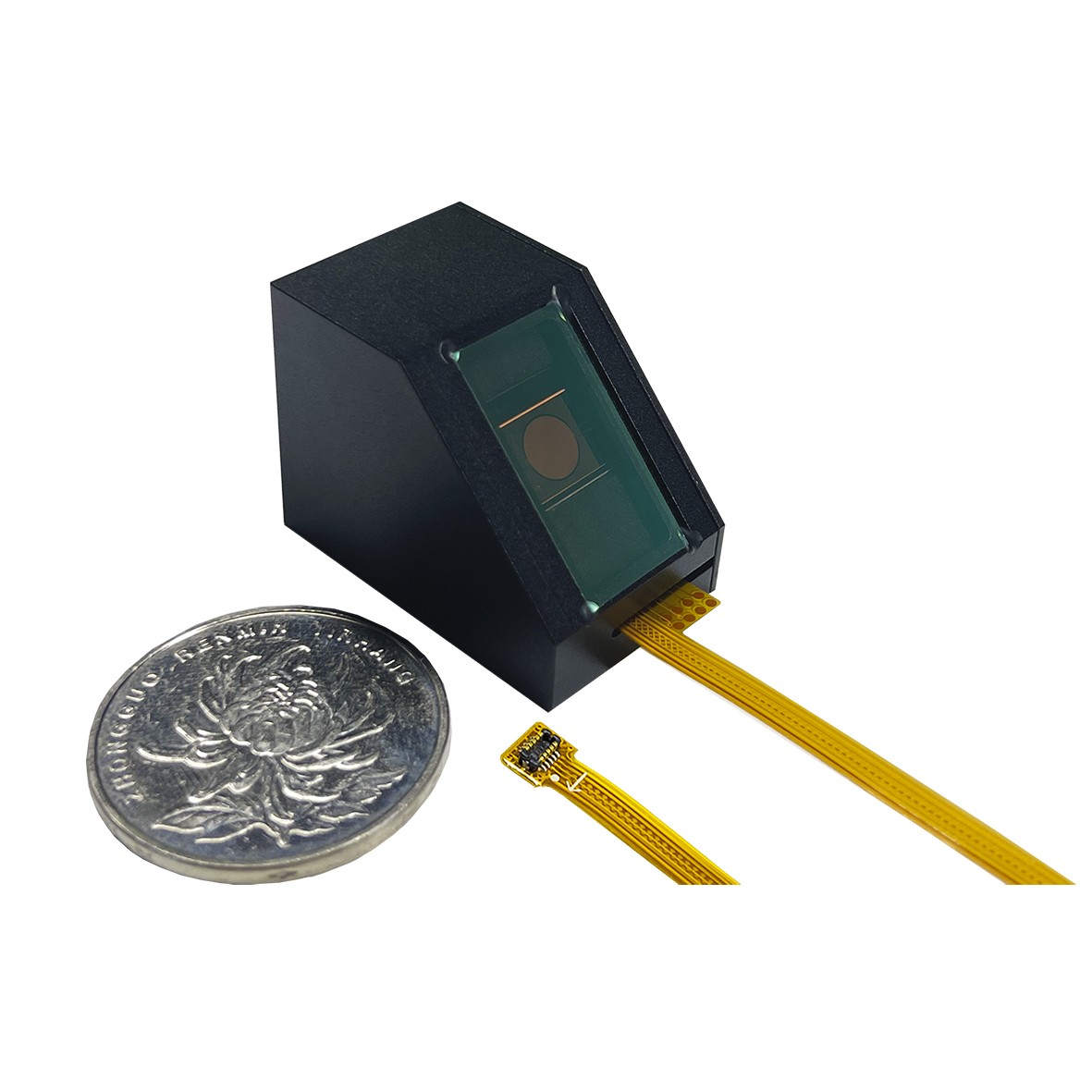

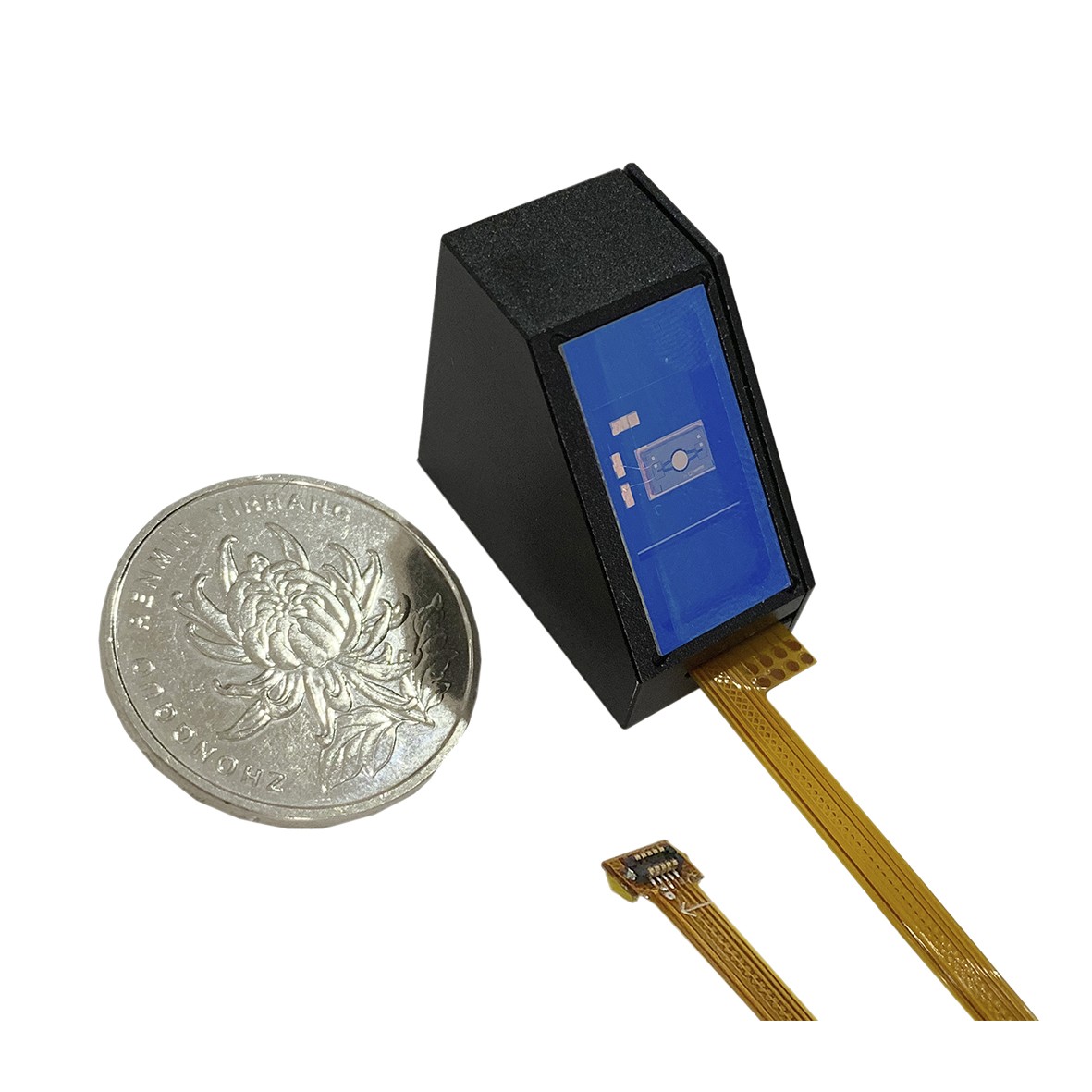

Up to now, there are four models in this series of products: P1100, P1130,P1150, and P1220. Different models can meet different mirror size and frequency requirements.
Zhisensor also supports product customization services and can develop specific products according to specific needs of customers.
Characteristics
Characteristics
The MEMS module turns the traditional rotating device into a chip.
High resolution & High reliability & Low cost & Small size
Small Volume , Light Weight
Small Volume , Light Weight
Lower Power Consumption
Lower Power Consumption
Longer Lifetime，High Reliability
Longer Lifetime，High Reliability
Easy To Batch Fabricated，Low Cost
Easy To Batch Fabricated，Low Cost
The modules are equipped with the function of real-time output of micro mirror angle position.
Modules support configuring the scanning angle of the MEMS mirror and the interval angle of the angle mark pulse.
Among them, the real-time scanning angle range that can be output is 0 ° - 60 °, and the minimum interval between angles is 0.05 °.
Application
Machine Vision
Lidar
Laser projector
Medical Imaging
Development Kit
Development Kit
The Kit includes MEMS module and official testing board. Users can set MEMS modules through the test board and view the working status of the modules. This is helpful for customers to evaluate the product rapidly. The test board is a development tool for interacting with the module.
There are LCD display for output and physical buttons for input on the test board. The functions of test board are mainly divided into three parts: module detection, module setting and working state query.
Specification
Specification
 |  |  |
| |
Model | P1100 | P1130 | P1150 | P1220 |
Type of Motion
| 1D Resonant | 1D Resonant | 1D Resonant | 1D Resonant |
Mirror Diameter | 1.3mm | 3mm | 5mm | 20mm*12mm
|
Frequency | 5.8kHz±10% | 1.15kHz±10% | 400Hz±10% | 200Hz±10% |
Optical Scan Angle | ±30° | ±30° | ±30° | ±30° |
Angular Resolution | 0.05° | 0.05° | 0.05° | 0.05° |
Operating Voltage
| 5V | 5V | 5V | 5V |
Mirror Coating | Au | Au | Au | Au |
