Dkam 3D Camera
Zhisensor provides 3D cameras based on MEMS/DLP solutions

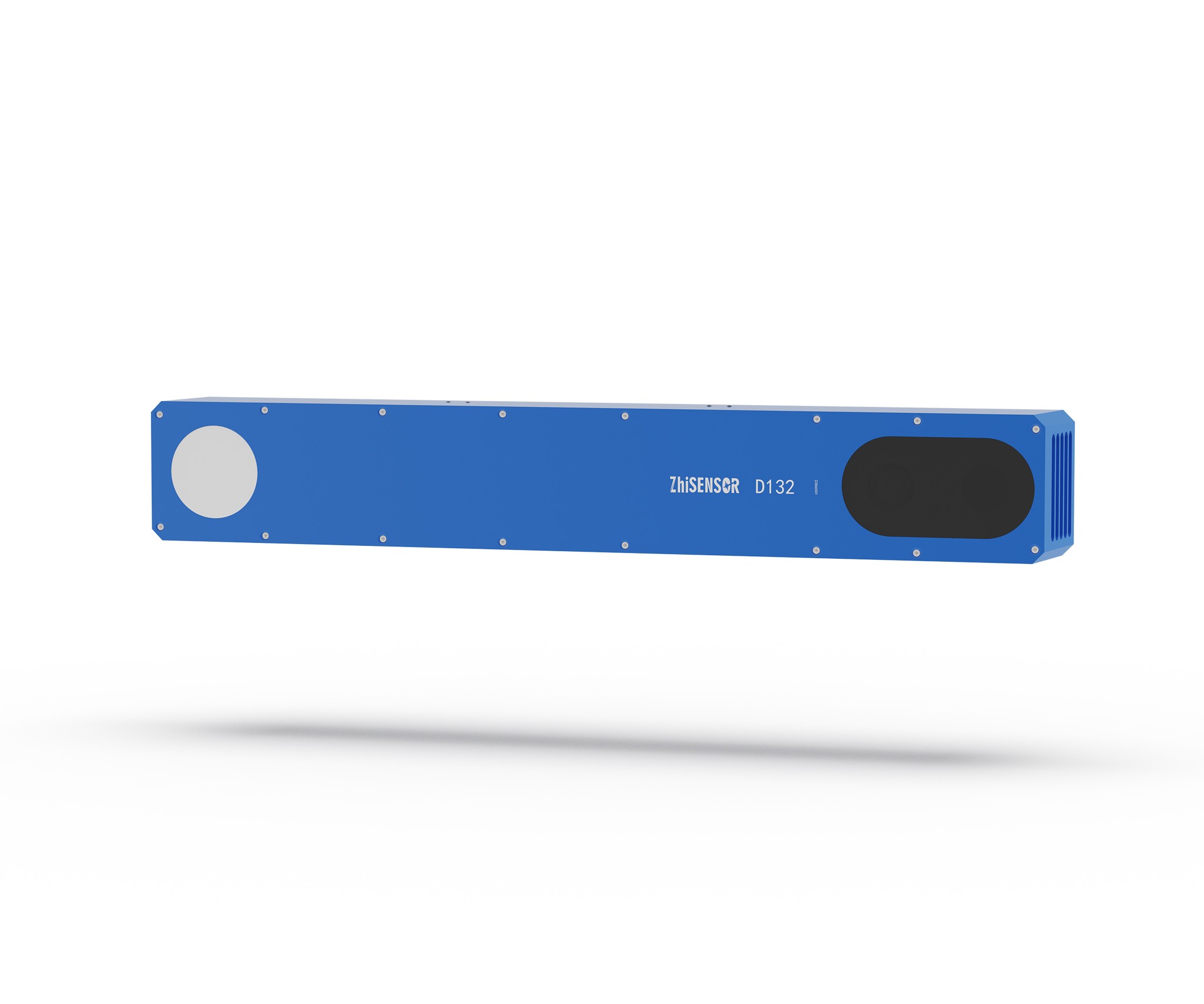

Based on MEMS mirrorD330XS/D132/D132S
Based on MEMS mirror
D330XS/D132/D132S
MEMS mirror developed by Zhisensor combined with infrared laser beam, to achieve the dynamic structure of the grating light projection. Through high-speed CMOS shooting stripe distortion, the high precision 3D information acquisition is realized by using triangular ranging principle.
The products have been widely used in machine vision, face recognition and other fields.

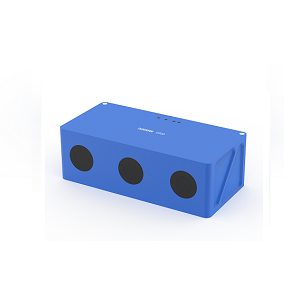

Based on DLP
D300
Adopt active depth perception technology, use DLP projector as structured light projector. The structure light is projected onto the object and captured and transmitted to the computer unit by the imaging unit to generate point cloud data.
The products have been widely used in bin-picking, trajectory correction, compound robot and other fields.
Dkam 3D Camera
Dkam 3D Camera
Zhisensor 3D Cameras based on MEMS Mirror have significant advantages！
Large Depth
Large Depth
No-focus projection
The projected pattern is clear at any position.
Small Volume
Small Volume
High integration & Small size
More flexible operation at the end of the robotic arm.
Longer Lifetime
Longer Lifetime
Laser light source
It has obvious advantages in product life and robustness.
Low Cost
Low Cost
Self-developed MEMS mirror
The raw material is Silicon Photonics, with low batch cost.
Point Cloud
Point Cloud
The Dkam3D camera can easily handle a variety of complex environments and achieve high-precision data acquisition.
Application
Application
Zhisensor 3D cameras have been widely used in 3D scanning, industrial detection, bin-picking, insurance 3D damage determination, 3D face recognition, machine vision and so on.
Bin-Picking
Bin-Picking
Trajectory Correction
Trajectory Correction
Dimensioning & Cubing
Dimensioning & Cubing
Palletizing & Depalletizing
Palletizing & Depalletizing
3D Scanning
3D Scanning
3D Face Recognition
3D Face Recognition
Welding & Positioning
Welding & Positioning
Compound Robot
Compound Robot
Defect Detection
Defect Detection
Specification
Specification
|  |  |  | |
Model | D132 | D132S | D330XS | D300
|
Calibration Accuracy
| 0.12-0.56mm | 0.12-0.34mm | 0.159-0.561mm | 0.049-0.103mm
|

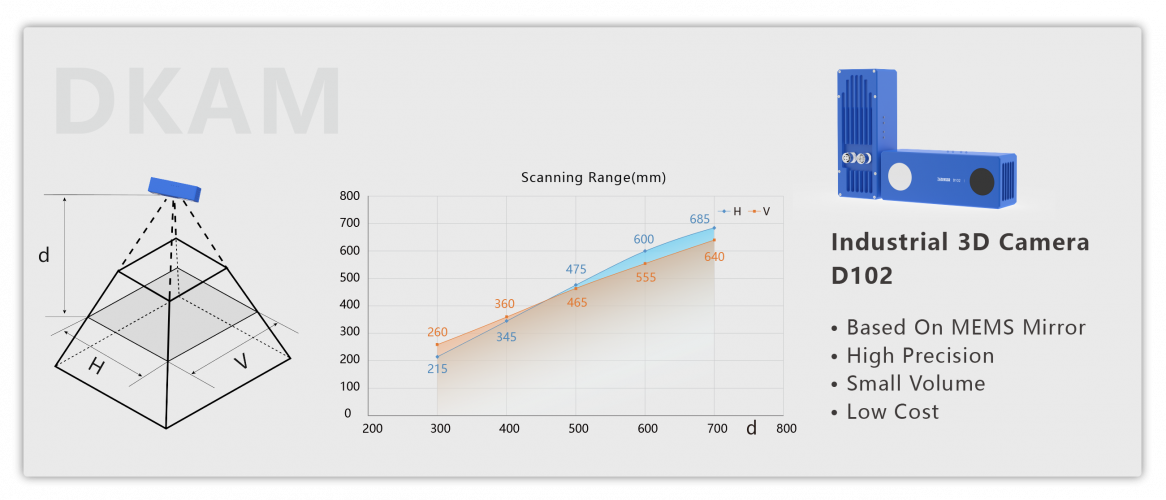

Scanning Range | 700-2000mm | 300-700mm | 300-700mm | 400-600mm
|
RGB Resolution | 2592×1944 | 2592×1944 | 1944×2592 | / |
Resolution | 1280×1024 | 1280×1024 | 1224×1024 | 1224×1024
|
Frame Rate
| ≤2.5Hz | ≤2.5Hz | ≤1Hz | 2Hz |
Dimension | 400×62×49mm | 165×62×49mm | 130×67.1×65mm | 180×88×60mm
|
Weight | 1550g | 750g | 850g | 990g
|
Soft Trigger/Hard Trigger | Soft Trigger | |||
SDK | Win/Linux | |||
Format | PCD、PLY、TXT | |||
